PIG® Gate Industrial Self-Closing Fall Protection Safety Gate | OSHA Compliant Walkway Barrier
PIG® Gate heavy-duty industrial self-closing safety gate. High-strength powder-coated steel with internal torsion springs automatically swings shut behind workers to prevent falls from ladderways, elevated platforms, and mezzanine openings.
PIG® Gate Series Models & Specifications
| Model | Opening Width Range (Adjustable) | Recommended Applications | Guard Height | Mechanism & Finish |
|---|---|---|---|---|
| PLS-481 | 380 mm – 550 mm | Fixed ladders, narrow catwalks, ladderways | Standard 900mm railing height with vertical adjustment (bottom gap ≤100mm toeboard compliance) |
• Patented Springless Gravity Self-Closing • Hot-dip galvanized + Safety yellow powder coat (ASTM B117 200h salt spray) • Universal U-bolt clamp (fits Ø32-85mm posts) |
| PLS-482 | 550 mm – 720 mm | Standard ladderway access, stairway entrances | ||
| PLS-483 | 720 mm – 890 mm | Mezzanines, wide catwalk platforms | ||
| PLS-484 | 890 mm – 1,060 mm (ext. to 1,100mm) | Equipment service openings, wide passages |
Quick Selection & Compliance Summary (TL;DR): PIG® Gate provides reliable passive fall protection for ladder openings, roof hatches, and catwalk platforms. Heavy-duty stainless steel internal torsion springs ensure the gate automatically closes every time. Meets OSHA 1910.28 and ANSI A1264.1 standards.
| Core Parameter | Specifications & Performance | Compliance Standards |
|---|---|---|
| Product Series | PIG® Gate Industrial Fall Protection Safety Gate (PLS-481 to PLS-484) | SOBLAR Workplace Fall Safety |
| Self-Closing Mechanism | Patented eccentric gravity-assisted self-closing hinge (Springless design; zero spring fatigue or breakage) | Smooth automatic gravity closure; tested to 100,000+ cycles (BS 6375-2) |
| Adjustability & Finish | Universal stepless width adjustment (covers 320mm to 1,100mm openings) | Hot-dip galvanized (55-100μm) + Safety yellow powder coating (ASTM B117 200h salt spray) |
| Compliance Standards | Meets OSHA 1910.29 & ANSI A1264.1; EN 13374 Class A & EN ISO 14122-3/4; ATEX anti-static certified | Withstands 75kg / 200 lb downward and outward shock load tests without permanent distortion |
Industrial Standards & FAQ:
Q: Why choose gravity self-closing safety gates over traditional safety chains?
A: Studies indicate that over 60% of elevated opening fall accidents occur because personnel forget to re-hook safety chains. PIG Gate automatically returns and shuts after passage via gravity, eliminating human error and delivering true inherent safety.
Q: Does PIG Gate require on-site welding or hot work permits to install?
A: Absolutely no welding required! The included universal U-bolt clamping module mounts to round pipes (Ø32-85mm), square tubing (30-85mm), flat bars (30-85mm), and angle iron (30-80mm). A single operator can securely bolt it in place in under 10 minutes.
"Workers May Forget to Re-hook Chains, but Safety Gates Are Always There."
Personal Protective Equipment (PPE) represents the last line of defense. The PIG® Gate provides continuous passive barrier protection for ladderways, rooftop openings, catwalks, and elevated platforms. Its patented springless gravity self-closing mechanism automatically closes every time, eliminating hazardous fall openings.
Key Engineering Advantages
- Patented Springless Gravity Closing: Unlike tension springs that fatigue, corrode, and snap, our gravity-based eccentric hinge provides permanent, maintenance-free self-closing reliability.
- No Welding Required: Fast and secure bolt-on installation on round pipe (Ø32-85mm), square tube (30-85mm), flat bar (30-85mm), or angle iron (30-80mm). Ideal for petrochemical plants with strict hot work restrictions.
- Industrial Anti-Corrosion Armor: Hot-dip galvanized steel core (BS EN ISO 1461 / ASTM A53) sealed with safety-yellow electrostatic powder coating. Proven to withstand 200+ hours in ASTM B117 salt spray testing.
- Certified Safety Compliance: Compliant with OSHA 1910.29, ANSI A1264.1, EN 13374 Class A, EN ISO 14122-3/4, BS 6375-2 100,000 cycle endurance tests, and ATEX anti-static safety requirements.
Field Installations & Verification
Catwalk & platform access gate installation with high-visibility finish

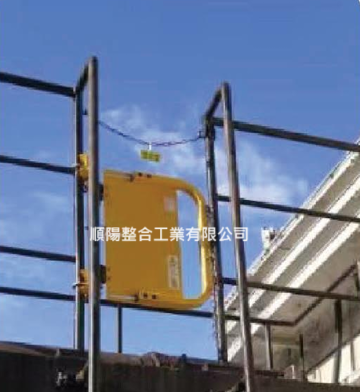

PLS-481 installed on vertical ladder opening with universal clamps
